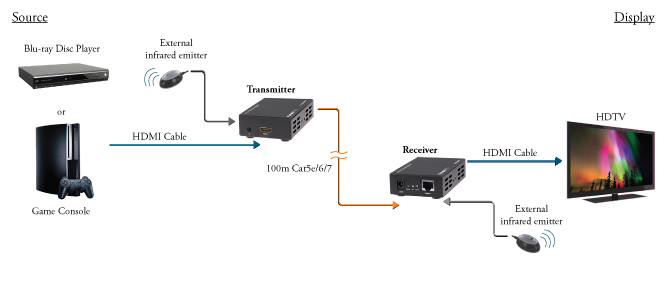

The KanexPro Long-Runner employs HDBaseT technology to route high-resolution HDMI signals from the source up to 330 feet (100m) to your HD display. It supports full 3D with resolutions up to 4Kx2K (4 times the 1080p), digital audio and IR extension over a single low cost CAT5e/6 cable. Ideal solution for your HDMI connectivity and extension needs over long distances. Features:Extend HDMI signals up to 330 ft. (100m) on single CAT5e cable Infrared Signal Input/Output, embedded over extension Supports resolutions from 1080p/60@48bit to 4Kx2K Supports data rates up to 10.2 Gbps Enables 3D pass-through Supports CEC pass-through HDCP and EDID compliant Audio support: Dolby TrueHD & DTS Master Audio, 7.1 compliant Uncompressed audio support such as LPCM Front panel-LEDs for link activity and HDCP authentication External power supplies included Specifications: Interface: Transmitter: Input: HDMI Output: HDBaseT (Cat 5e/6) Receiver: Input: HDBaseT (Cat 5e/6) Output: HDMI Video Amplifier Bandwidth: 6.75Gbps / 2.25Gbps per channel Vertical Frequency Range: 50/60Hz Resolutions (HDTV): 480i, 576i, 480p, 576p, 720p, 1080i, 1080p Computer Resolution: WUXGA (1920x1200) Power: 5V DC@2A Power Consumption: 5W (Maximum) Regulatory Approvals Converter: FCC, CE, UL Regulatory Approvals Power Supply: FCC, CE, UL Dimensions: 3.93”x2.5”xZ1.0” (100x65x25.5mm) Weight: 0.37 lbs. (170g) Warranty: 1 Year limited  |
